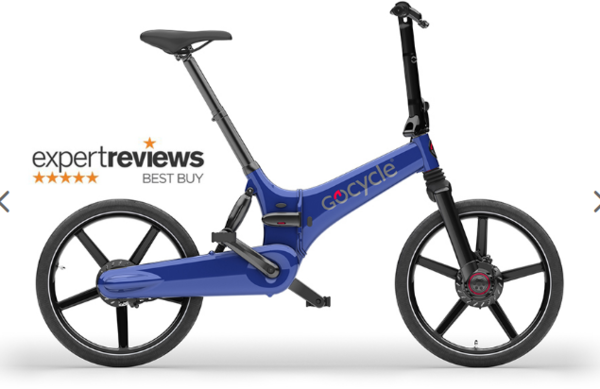

Gocycle GX folding electric bicycle
Details
the fast folders: Designed to be folded in less than 10 seconds,
the all new GX is the perfect ebike for urban commuting.
The GX Folds quickly to take on public transportation and can be stored neatly at the office.
The GX features the Gocycle's world speed record holding PitstopWheels. Six bolts fasten the wheels to the hubs like a car for a faster fold. The side mounted design not only looks great but provides easy access for fixing a flat tire without removing the wheel!
The powerful lithium ion battery is easily accessible and hidden within the all new hydroformed aluminum frame providing a range up to 40 miles (65km) with a 7-hour charge time for GX (upgradable to 4-hour)
The GX comes with ergonomic and comfortable grips mated to a 3 speed mechaical twist shifter. Cables are elegantly routed through the frame conneting to the durable Shimano Nexus gearing. Central LED displays the fuel level of your battery.
Personalize your GX with a full range of accessories including the FREE GocycleCOnnect App!
Specs
| Frame | Hydro-formed 6061 T6 alloy front frame with injection moulded magnesium Cleandrive |
|---|---|
| Fork | moulded magnesium |
| Electric-Assist Type | Pedal Torque Sensing Type 1 programmed at Cross Country Cycle |
| Motor Specs | Gocycle proprietary front hub motor gear drive with traction control 500 W continuous |
| Drive System | Gocycle proprietary front hub motor gear drive with traction control 500 W continuous |
| Throttle | Gocycle proprietary |
| Battery Type/Weight | Quick removable lithium ion: 13.7 Ah, 22 V, approx 300 Wh |
| Recharge Time | 7 hours (4 hours with optional fast charger) |
| Range on Full Charge | Up to 40 miles (65 km), depending on pedal input |
| Max. Assisted Speed | 20 mph / 25 kph |
| Saddle | Velo Sport |
| Handlebars | LED Fuel Guage or with Smart Device and GocycleConnect™ App |
| Bicycle Drivetrain | Shimano Nexus 3 speed with gear inches: 1st=39.1 in, 2nd=53.3 in, 3rd=72.5 in |
| Wheels | Magnesium with center hub mount |
| Tires | Gocycle All Weather (406-54, 20 x 2.25 in) |
| Brakes | Brakes Hydraulic disk, front and rear |
| Pedals | Gocycle Folding Standard |
| Weight | 17.8kg (39.2 lbs) excluding kickstand & including pedals |
| Color(s) | Electric Blue (uniform), Matt Black (uniform), White/Black (Two Tone | Gloss White front frame & Gloss Black Cleandrive) |
| Sizes | One Size fits 4'8"-6'5" (shorter sizes need optional shorter seatpost) |
* Subject to change without notice.
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Blue | KKL-3307 | 14622 |
| Matte Black | KKL-3069 |
